Zigbee wall dimmer with 2 switches - the mobile light switch with smart inner life

Our wall dimmers bring your lighting ideas to life in a simple way with just a few clicks. Design your light in a very simple and user-friendly way thanks to our Zigbee wall dimmer with 2 switches. The operation is self-explanatory and the installation is done quickly. The pure white light switch brings a lot visually and also makes a good figure in common standard switches.

Kompatible Zigbee-Koordinatoren

The iluminize wall dimmer communicates via Zigbee and thus addresses many coordinators such as Philips Hue. Pairing with the Philips Hue Bridge gives you a comprehensive and orderly integration of many LED lamps. Other coordinators following the Zigbee standard are also possible. We cannot guarantee the operation. Please contact the manufacturer of the respective coordinator.

• Amazon Echo Dot (from 4th generation)

• Osram Lightify

• Google Assistant

• and many more

Stufenloses Dimmen

Press the switch to turn the LED light on or off, and then can be dimmed smoothly between 0.1% and 100% brightness by long press when on. Also use the dimming function synchronously for any number of LED systems and expand your LED design intelligently.

Innerhalb einer Zone steuerbar

The control is possible synchronously as well as individually in 1 zone. Integrate any number of LED systems within this zone and operate them synchronously.

The used wall dimmer decides dynamically during use in which operating mode the Zigbee controller works.

Memory-Funktion

Switching on/off is slightly time delayed without flickering and is therefore easy on the eyes. Each time it is switched on, the last set lighting situation is restored.

Großzügige Reichweite

Operation with a Zigbee controller is guaranteed thanks to the decent range. This is up to 30m, depending on the nature of the room, and thus allows flexible lighting control. The wall dimmer operates in the approved frequency band 2.4 GHz and is powered by batteries.

Verfügbare Funktionen

LED design by Zigbee offers you many advantages and possibilities. Thanks to the right combination of LED controller and this wall dimmer, no wishes are left unfulfilled. However, there are also limitations that need to be considered:

5145.11 Zigbee-Wanddimmer mit 2 Schaltern für weiße LEDs

Cremeweiß eingerahmt

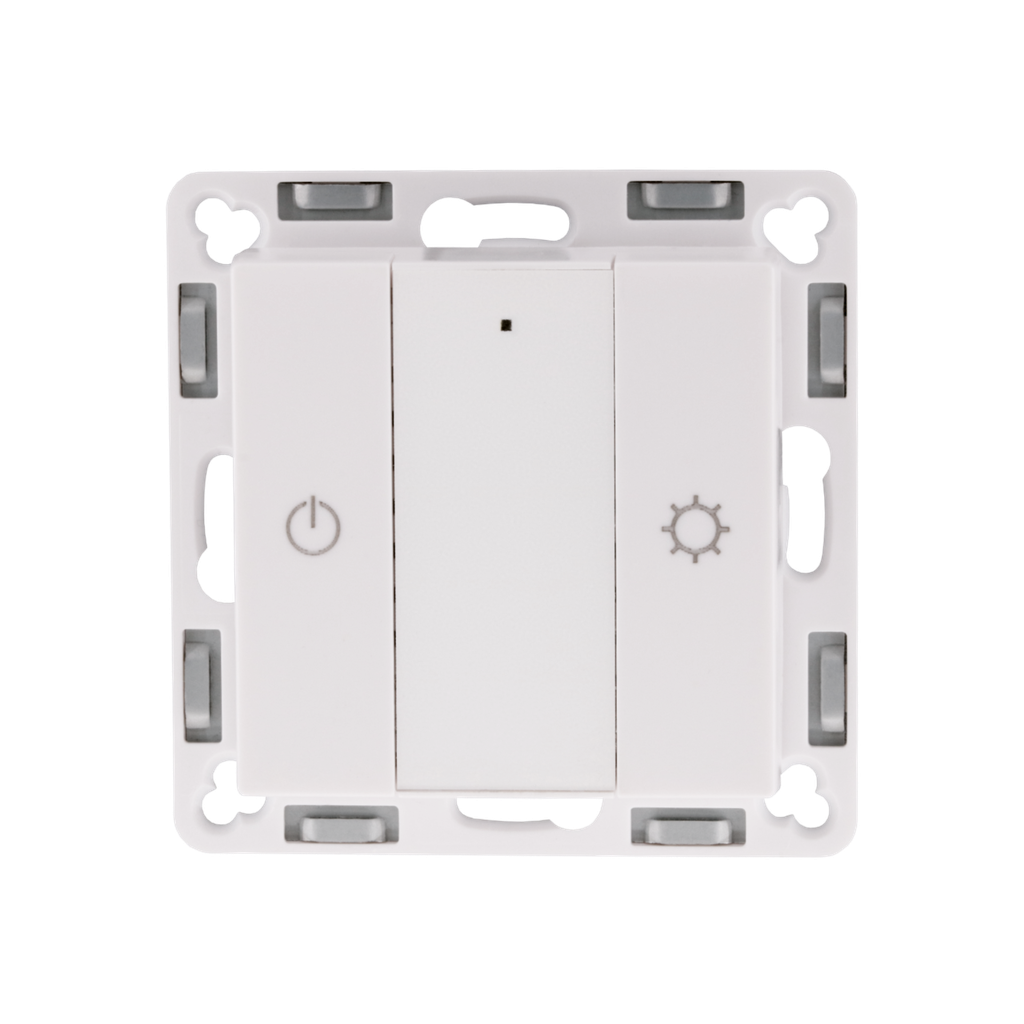

The iluminize wall dimmer impresses with a creamy white frame that complements warm white shades well. With its rounded edges, it comes across as visually elegant and stylish and cuts a fine figure on walls as well as other surfaces.

Das iluminize Zigbee-Netzwerk

A control via Zigbee network expands your LED lighting design many times over. Here, capable lamps and luminaires are integrated into your smart home in order to be able to assign and configure them as desired. For example, you can integrate up to 30 LED controllers and actuators including their lights and control them with a robust radio frequency of 2.4 GHz.

The flexible wall dimmer can be paired either directly with a compatible controller (see table) or via app. You may also connect several wall dimmers to one controller and in this way operate different LED light strips separately.

Installation & Montage

The wall dimmer is battery operated and therefore does not require a power connection. The included batteries have a long lifetime (up to 2 years) and are easily replaceable. Please remove the protective film under the battery before commissioning. Given the protection class of IP20, operation is intended for indoor use only.

Our wireless wall dimmer can be easily glued or screwed on surfaces with the included 3M sticker. It can also be easily mounted on standard flush-mounted boxes. The inner part can be removed from the frame and inserted into one of the following standard switches.

Lieferumfang

With the delivery you get:

• 1 x wall dimmer

• 1 x frame

• 1 x mounting plate

• 1 x battery (button cell CR2032 / 3V)

• 1 x 3M sticker

• 2 x screws

• 1 x instruction manual
